Rack Units, Power Density and Capacity
A rack is full when its first binding constraint is exhausted—not necessarily when the last rack unit is occupied.
Learning outcomes
- Read rack-unit notation
- Calculate average rack power density
- Identify the first binding capacity constraint
AVERAGE RACK DENSITY
kW PER RACK = IT LOAD kW ÷ ACTIVE RACK COUNT
An average helps planning but can hide one much hotter rack.
U measures height, not readiness
One rack unit, written 1U, is 1.75 inches of vertical mounting height. A nominal 42U cabinet cannot devote every unit to servers: patching, switching, power, blanking, cable management and service practice consume space.
Depth, rail type, weight and airflow direction also matter. A device that fits by U height may still be incompatible with the cabinet or floor loading.
Power often fills the rack first
Nameplate power is a conservative equipment rating; measured and modeled demand support better planning when used carefully. Branch-circuit limits, redundancy rules and power-factor behavior define usable capacity. A/B feeds should each be checked for the intended failure case.
Modern accelerator racks can concentrate far more heat than a traditional room average suggests. Design to the actual high-density zone and its growth path.
Capacity is multidimensional
Track U space, kW, cooling airflow or liquid capacity, static weight, network ports, cable pathways and working clearance. Reserve capacity has value only when all necessary upstream systems can support it.
Good operators state the binding constraint explicitly: “rack has 8U free but only 0.7 kW protected power,” not simply “rack has room.”

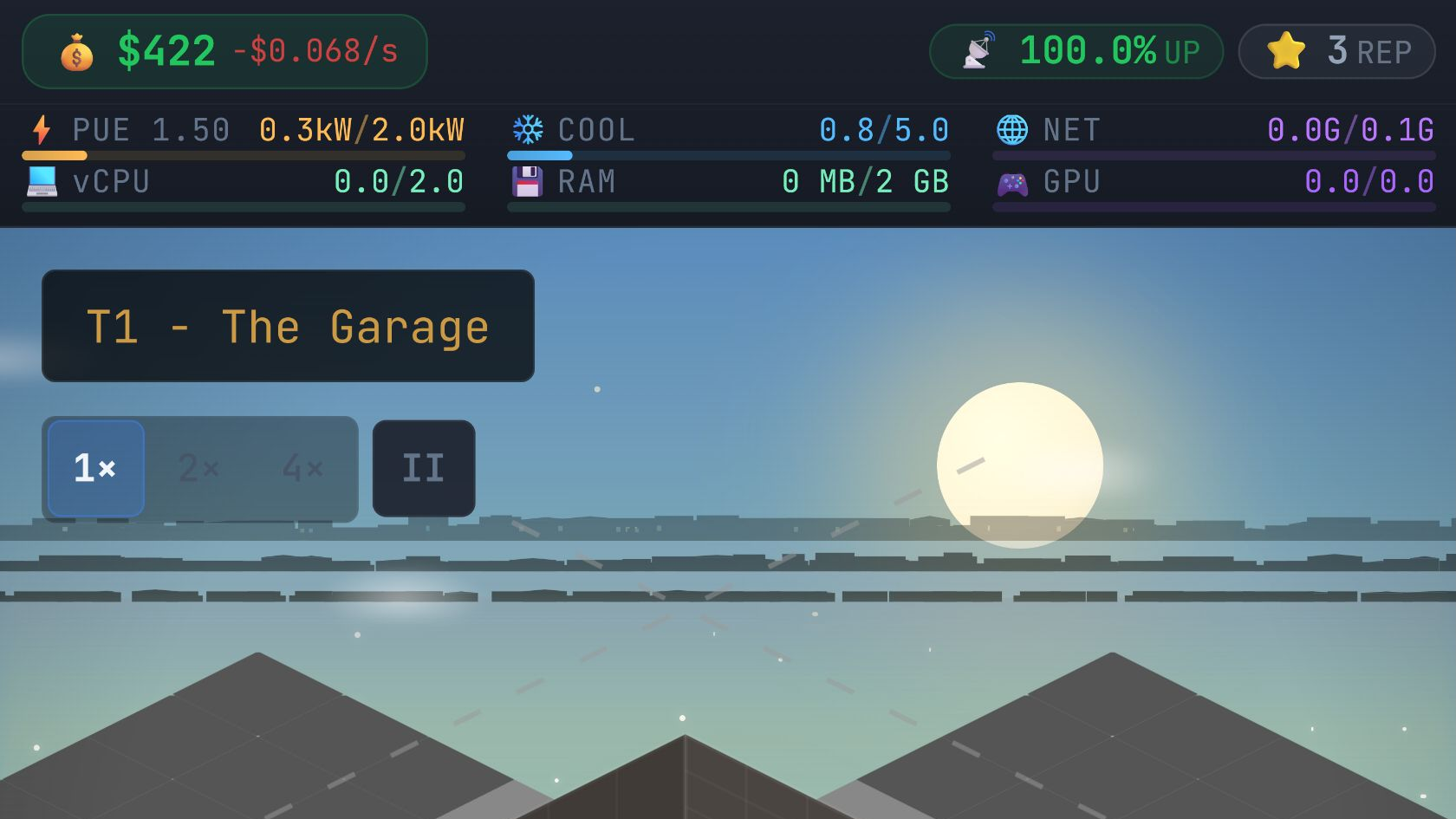

How it appears in Data Center Fan
Every server consumes compute capacity, power and cooling simultaneously. Buying the machine is only valid if the facility has a legal tile and enough upstream resource headroom.
Common misconception
“A half-empty rack is half available.” It may already be full on protected power, cooling, weight or ports.
Knowledge check
A hall has 480 kW of IT load across 40 active racks. What is the average density?
- 12 kW/rack
- 19.2 kW/rack
- 0.083 kW/rack
480 ÷ 40 = 12 kW per active rack. Individual racks may still vary.
